UPS ARMAC ON-LINE 2000VA IEC 230V OUTLETS METAL CASE
- UPS ARMAC ON-LINE 2000VA IEC 230V OUTLETS METAL CASE
Armac Office On-Line series UPS - O/2000I/ONL was designed for demanding users who want to safely maintain the work of electronic equipment that consumes vast amounts of energy in the event of a power outage.
Paused operation, failure of electronic devices can cause not only severe financial losses but also the loss of essential data. That is why it is worth investing in the UPS model O/2000I/ONL, which will prevent many unpleasant effects of potential overvoltage.

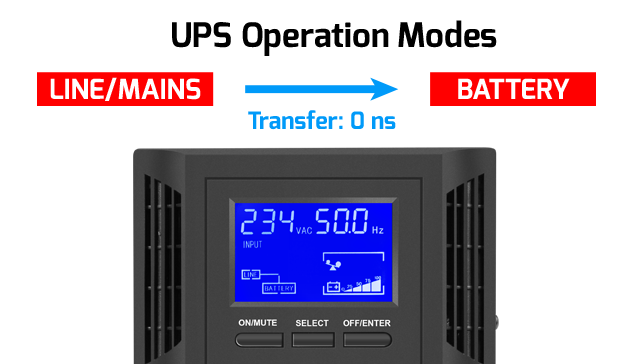

IMMEDIATE RESPONSE TO AN INTERRUPTION IN THE POWER SUPPLY
O/2000I/ONL is a high-quality uninterruptible power supply with On-line topology. The device operates in continuous mode, which means that in the event of a power failure it does not have to switch to battery operation; The UPS immediately starts running on battery, without any delay, significantly reducing the risk of damage to the connected device.
 | EFFICIENT, FUNCTIONAL SOLUTIONThis uninterruptible power supply was created for the most demanding tasks, such as supporting the operation of powerful PCs, workstations or equipment with high energy consumption. The UPS can perform such hard work due to the use of more efficient 9Ah batteries, with a Power Factor of 0.8. What is more, this model has 8 IEC 320 C13 output sockets, with which it can protect several devices at once. Due to the nature of its operation (Pure sine wave during battery operation), the UPS can be used with devices with an electric motor or heater, e.g., laser printers, scanners, garage and entry gates, electric roller blinds, central heating furnaces. |
POSSIBILITY OF EXTENDING THE BACKUP TIMEThere are situations in which much more time is needed to ensure the safety of electronic devices during a power failure. Therefore, to extend its battery backup time, the O/2000I/ONL uninterruptible power supply is equipped with a socket for connecting additional, dedicated Battery Pack B/0609/O modules. However, it is worth remembering that when connecting BP, make sure that the combined voltage of the UPS battery and the BP module is the same. |  |
 | CONVENIENT OPERATION MONITORING SYSTEMThe Armac uninterruptible power supply communicates via both the USB and the RS-232 port. Both of these methods allow you to connect the UPS to the PC and issue commands or monitor the operation of the device using PowerManager II software. It is a convenient and straightforward way to ensure proper protection for valuable equipment. The RS-232 port gives users more room for maneuver in the field of UPS management. |
ARMAC UPS SAFETY - OVERLOAD PROTECTIONImportantly, each Armac emergency power supply system is equipped with an overload protection module. When the UPS is overloaded during its regular operation, the device will automatically safely shut down the power supply to the equipment connected to it. This solution strengthens the safety and comfort of using Armac uninterruptible power supplies. |  |
 | MICROPROCESSOR CONTROL – EFFECTIVE SURVEILLANCE OF SENSITIVE DEVICESThe proper work of the emergency power supply is supervised by a specially built-in processor that controls the parameters of the device itself, its correct operation and the power supply of connected devices. The technology used in the UPS also ensures automatic battery charging in Stand-By mode, as well as automatic start-up feature after the power supply returns. |
AUTOMATIC VOLTAGE STABILIZER – AVR
With the implemented of AVR feature in O/2000I/ONL, standard solutions commonly found in
Line-interactive UPS topology are improved. That is due to the use of the network autotransformer, which regulates the voltage transmitted to devices connected to the UPS on an ongoing basis. AVR, therefore, provides comfort and high performance.
| • If the voltage is about 255V or higher, then UPS will transmit the AC power to the autotransformer (AVR) and the output voltage will be within the allowable range from 195 to 255V. |  |
