Product description

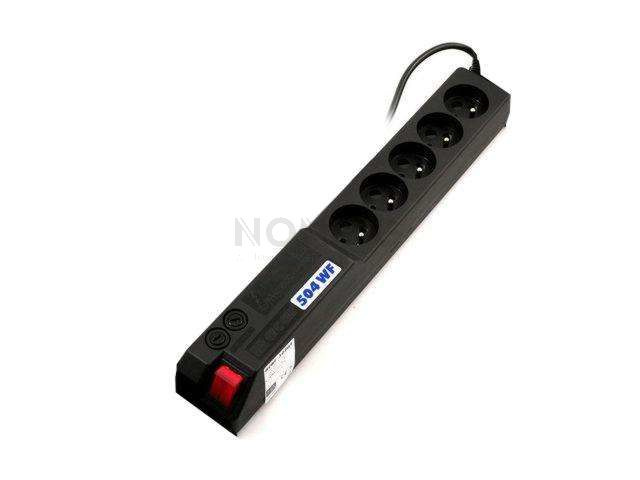

The acar 504 WF is enhanced version of the acar 504 W, enriched with a high attenuation interference suppression filter. It features five socket outlets 230V with earthing and two fast blow fuses. The high potential of such suppression filter significantly expands the range of possible applications of the device. The area of application is the protection of high end home Audio & Video sets, sensitive measuring devices, advanced IT and telecommunications equipment. The illuminated power switch indicates presence of voltage in socket outlets. The included mounting brackets allow permanent installation of the device in any convenient location.
Technical Data
Maximum load: PMAX 2300W
Nominal voltage UN: 230V
Nominal frequency: 50Hz
Nominal load current: ?IN =10A MAX
Surge protection response time: <25ns
Maximum voltage UC: 250V 50Hz
Protection level UP: <1,3kV
Nominal discharge current iN: 2kA (L/N) – 8/20µs
Maximum discharge current iMAX: 6,5kA (L/N) – 8/20µs
Fuses: two fuses 10A/250V
RFI/EMI attenuation: <55dB
Anti-shock protection system: earthing pins connected to the protective earthing conductor
Number of socket outlets: 5 two-pole socket outlets with earthing pin, 10A/250V
Switch: illuminated double pole mains switch
Housing: made of self-extinguishing plastic
Dimensions: 385x59x55/43mm
Weight: 0,54kg
